AIRONE hob extractor hood MODIGLIANI with AME12 outdoor motor

Description

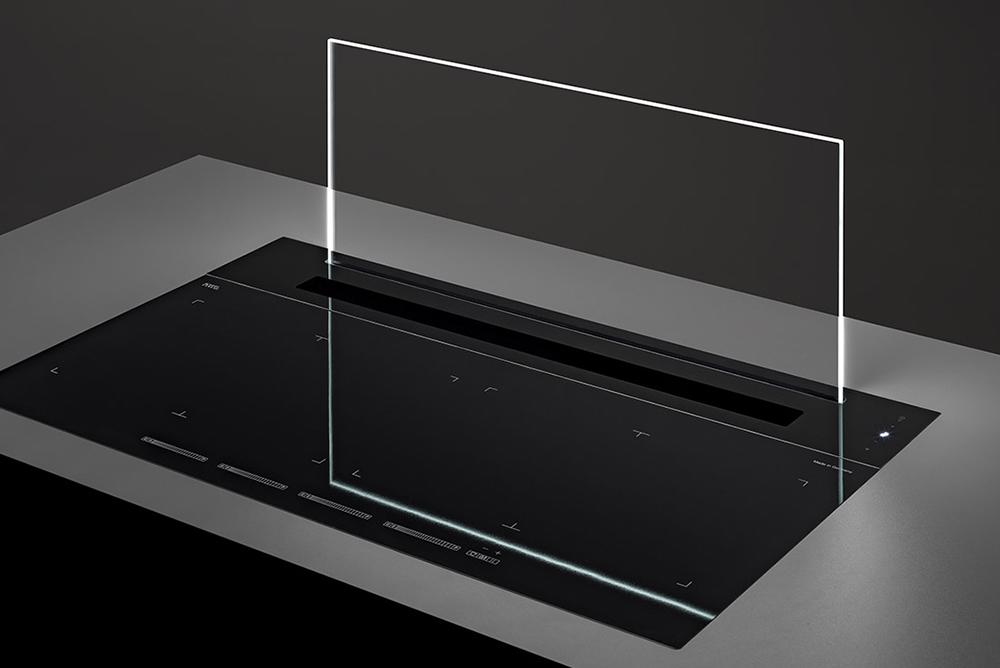

Full glass Modigliani Airone Hood to be matched to induction hobs. The back transparent glass, perimetrically enlightened, guarantees an excellent aspiration regardless the position of the pots on the bob. Both if the hood is on and off, the transparent glass remains on sight and it can remain enlightened, to guarantee a minimal and elegant lighting of the space. The installation can envisage the use of a remote motor, on demand, at a suggested maximum distance of 6 meters. Each version can be installed in filtering mode by adding the optional professional plinth filter kit containing granular activated carbon, of high quality and efficiency, to replace after about 3 years. The hood is supplied with 8+2 layer aluminium grease filters as standard

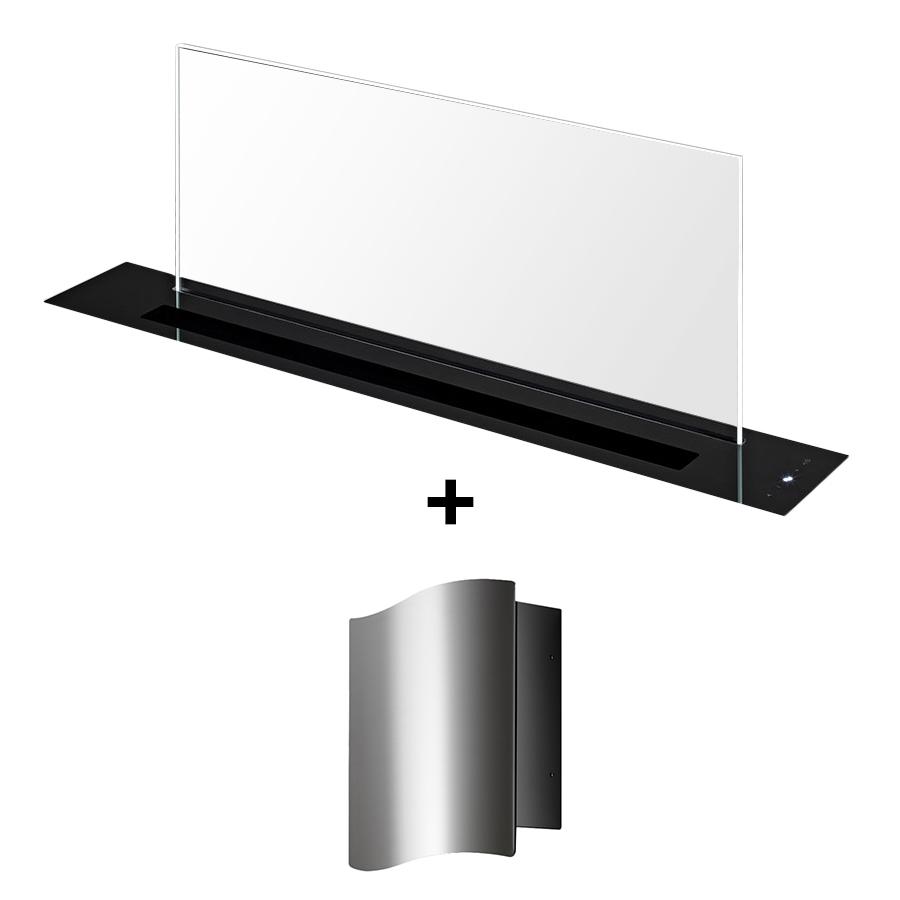

Extraction version 90 cm with AME12 outdoor motor with kit AMM
Comando: 4 speed electronic 'TOUCH CONTROL' with automatic switching off
Class A
Airflow: 450-855 m3/h
Max Pressure: 760 Pa
Lighting: Strip Led (5,5 W - 4000° K)
Nise Level: 65-85 dBa
Finishing: black glass with clear glass
Antigrease anodized aluminium filters
Junction: Ø 150 mm
Optional: Professional plinth carbon filter kit KFCPZ for filtering version.

Any tube, connection or junction needed for the installation of your specific configuration are not included in the standard packing and they can be bought separately on our website or in any shop of plumbing material as they are not specific Airone branded elements.
