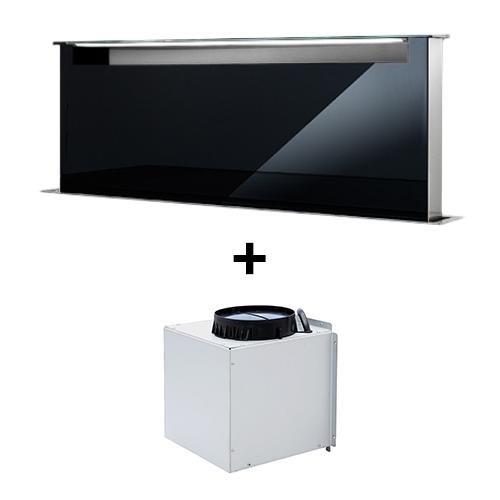

AIRONE hob extractor downdraft hood ELEKTRA 90 cm BLACK with AMD motor

Description

Elektra Airone is a hood of modern design, guaranteeing the greatest aesthetic impact and a better integration with the living space. It is available in stainless steel or black glass versions equipped as standard with led lighting and high design remote control. It is top flush installed and it is suggested the use of linear hobs (gas, induction or ceramic glass). A high efficiency and stability mechanism allows the hood an extension of 30cm, moreover it is equipped with a patented anti-crushing system (safety microswitches to lock movements). The cover can be personalized with the same finishing of the top. The hood can be installed with a proper AMD motor (included, 4 possible smoke outlets positions), to be assembled on hood board or with an optional remote motor (AMR09, AMR10, AMR20, AME12, AMF13). All the motors garantee a high efficiency aspiration. Each version can be installed recirculating, by the use of the traditional optional carbon filters PCR5 to combine to the grease filters or by the use of the optional plinth carbon filter KFCPZ that contains 4 kg of activated granular carbon of high quality and efficiency whose durability is of 3 years without maintenance. The grease filters are easily assessible for easy cleaning.
Version 90 cm
Remote control
Motor AMD
Class A
Annual energy consumption: 53.4 kW/a IEC motor capacity: 231-500 (729 intensive) m3/h Motor pressure at intensive speed: 607 Pa Lighting: 6.5W LED strip (4200°K) Sound level: 41-59 (66 intensive) dBa Finishing: AISI 304 steel, front panel in black glass
Antigrease anodized aluminium filters
Junction: Ø 150 mm / 220×90 mm / 230×80 mm Optional: PCR5 filter 200X270X10 mm or KFCPZ professional carbon plinth filter kit for filtering version.

Any tube, connection or junction needed for the installation of your specific configuration are not included in the standard packing and they can be bought separately on our website or in any shop of plumbing material as they are not specific Airone branded elements.

Assembly instructions
